Points Session - 14th September 2026

This session was a technical demonstration and comparative analysis of model railway point control systems, focusing on the transition from traditional Analogue (DC) to Digital Command Control (DCC). The discussion highlighted the trade-offs between physical manual control and software-driven automation.

Power Management & Safety

A primary focus was the risk associated with high-amperage power supplies.

• The Fire Risk: Pete recounted a recent incident where a standard 12V hub output caused a fire because two wires touched. He noted that as voltage remains low, amperage can spike (reaching ~3A in his case), which is sufficient to destroy equipment and cause combustion.
• Multi-Joiners: Pete demonstrated multi-joiner units that include a standard plug socket and extra feeds for external power sources (e.g., telephone connectors). These allow for looping power buses but require careful insulation.
• Capacitor Discharge Units (CDUs): Essential for DC layouts to provide the "kick" needed to switch multiple points. Pete warned that modern DCC units (like those from DCC Concepts) now include discharge buttons to prevent shorting out expensive units (£65+) when connecting them while the internal capacitor is still charged.

Point Motors: DC vs. DCC

The group compared various point motor types, focusing on installation and realism.

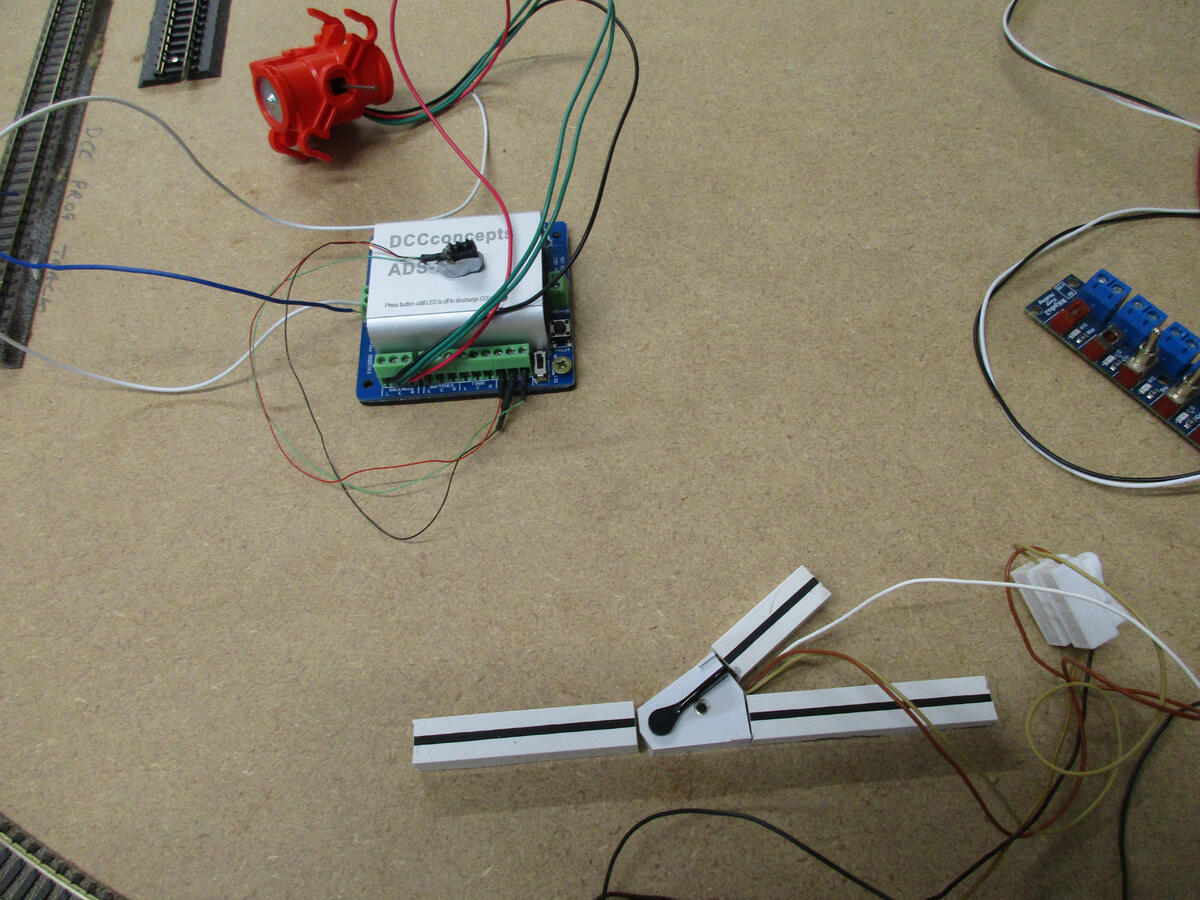

• Installation Friction: The primary challenge identified was the physical alignment of pins through the baseboard. Pete argued that "professional" advice on 2mm tolerances is often unnecessary; his method involves drilling two small holes and connecting them to create a slot.
• Realism vs. Functionality:
  • Solenoid Motors: Standard Peco-style motors provide a "click-click" action.
  • Slow-mo/Servo Motors: Motors like the MP1 or Tortoise provide a realistic "brrr" movement, mimicking real-world point operation.

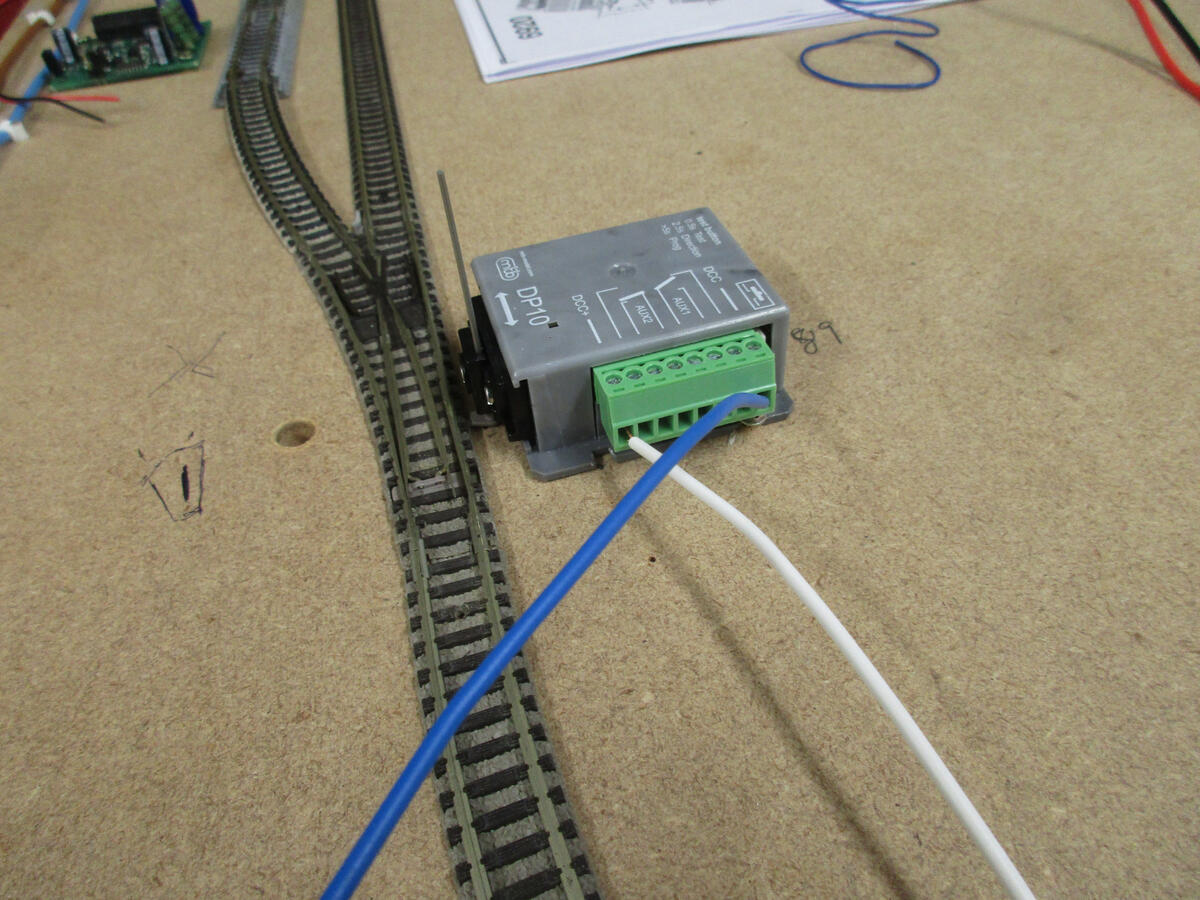

• Kato Points: These were noted for their "voodoo magic" two-wire system (red/black) which differs from the standard three-wire (positive/negative/switch) setup. They require specific DCC decoders to function.

Frog Polarity & Wiring

A technical debate occurred regarding "Live Frogs" (Electrofrog) vs. "Insulated Frogs" (Insulfrog).

• Uni-frogs: Modern Peco points often come as "Uni-frogs," which can be wired for polarity switching or left as insulated.
• Frog Juicers: These devices automatically detect a short circuit when a train enters a frog and instantly reverse the polarity to match the track, eliminating the need for complex manual switching.
• Isolation: In DC, points are often used to isolate sections of track. In DCC, this is less relevant as the track is permanently live, requiring insulating fishplates to prevent shorts at the frog.

Control Philosophy: The DCC Debate

The session concluded with a discussion on the "user experience" of model railroading.

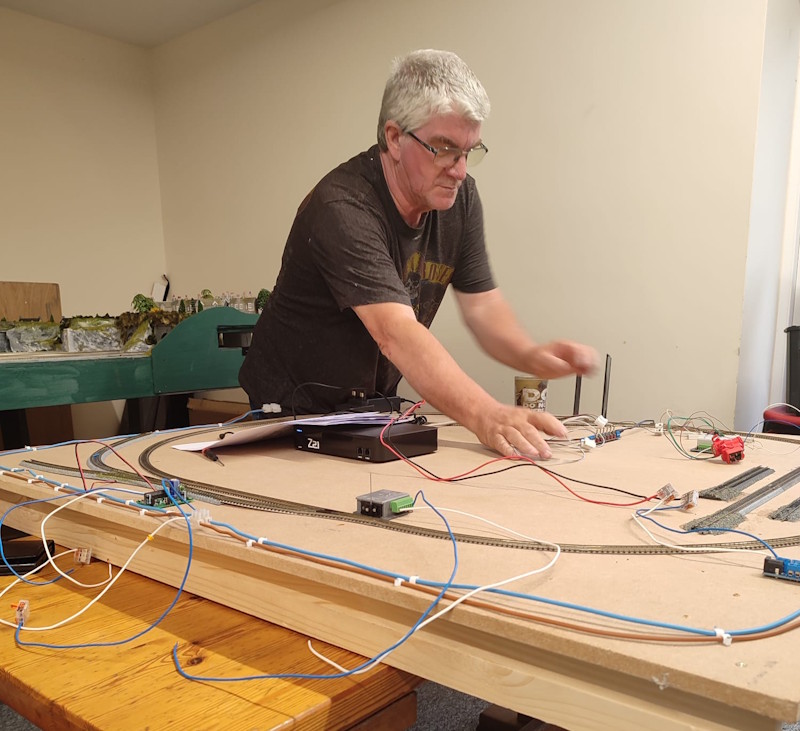

• The Z21 System: Pete demonstrated the Z21 software, which allows control via tablets/phones. While powerful for setting complex "routes" (switching multiple points with one tap), it was criticised for removing the tactile "lever-pulling" experience.
• Complexity vs. Joy: There was a consensus that full computer control (using software like iTrain or CheapMark) can lead to "watching someone else's railway" rather than driving it.
• The "Pete" Recommendation: For those who prefer simplicity and direct control, staying with DC or using a "mimic board" with physical toggles is often more satisfying than navigating smartphone menus while trying to watch a moving train.
