Backfilling the Trench

To combat the poor ground conditions, particularly during damp weather the trench was lined with a semi-permeable GeoTek membrane. It was then back filled with 3" of crushed concrete which was tamped and then followed by a further 3" of crushed concrete and tamped again. Onto this was laid 3" of 20mm grade carboniferous limestone, or ballast! This was also tamped and levelled to make it ready for track laying.

The station area lined with Geotek membrane. The station area lined with Geotek membrane.

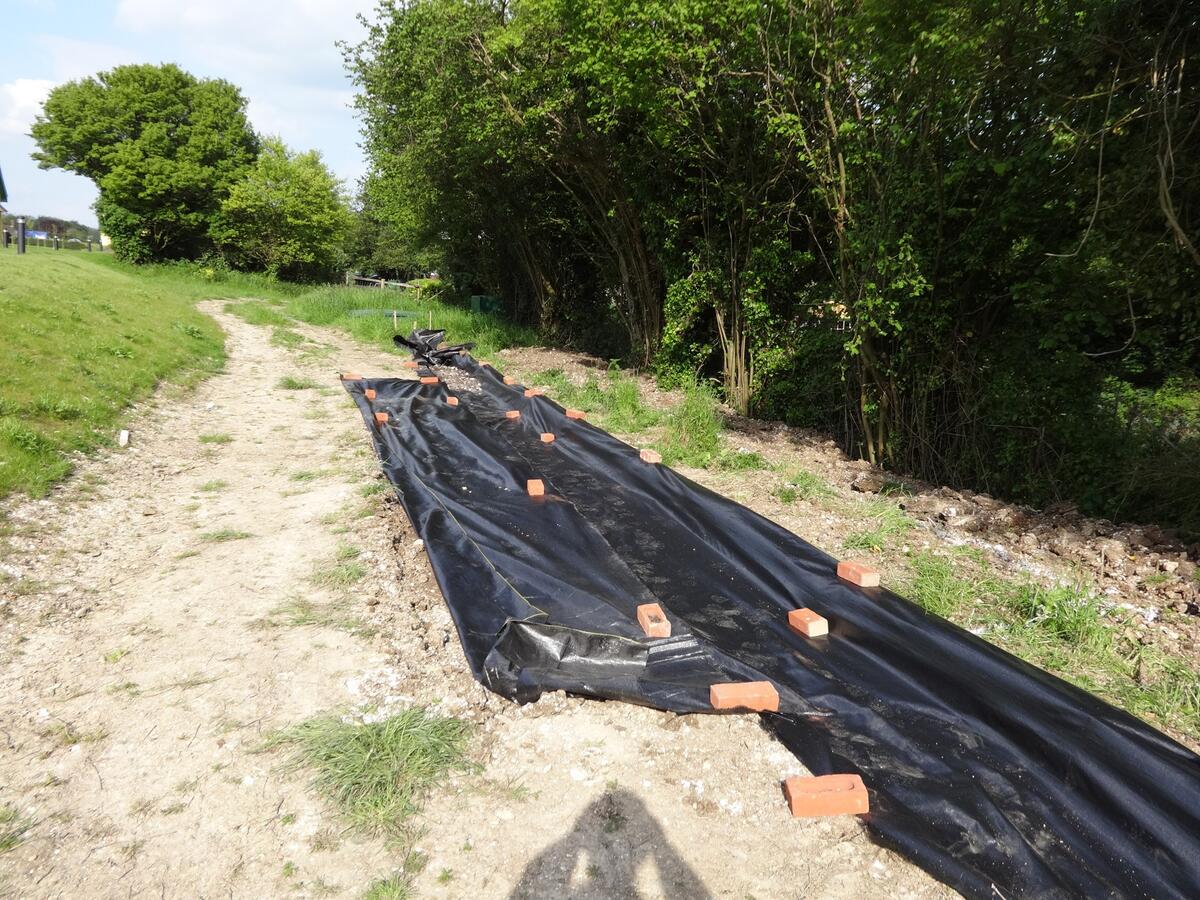

Lining the trench with Geotek membrane. Lining the trench with Geotek membrane.
One of the drainage ditches lined and backfilled One of the drainage ditches lined and backfilled
The yard area lined with Geotek membrane. The yard area lined with Geotek membrane.

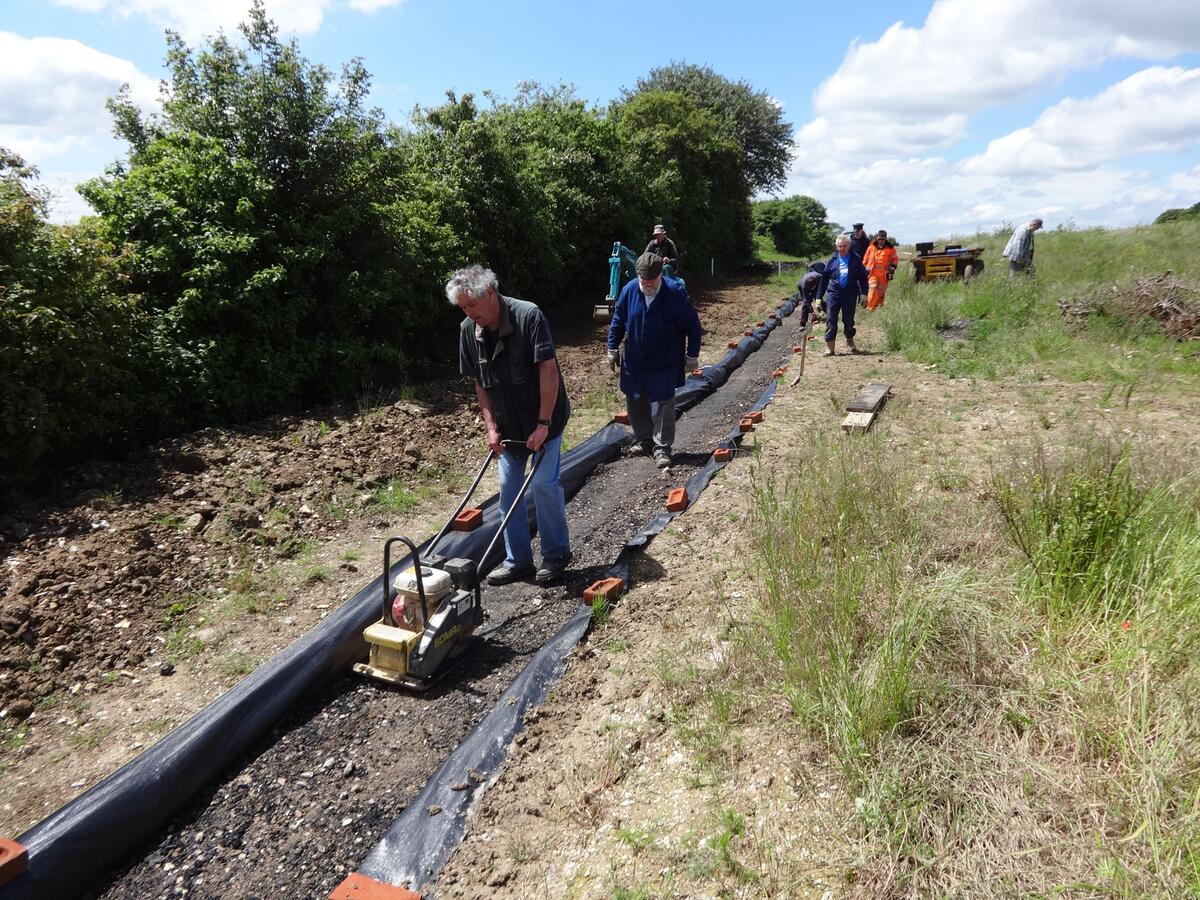

Dave and Keith tamping crushed concrete in the trench. Dave and Keith tamping crushed concrete in the trench.
The station area back filled with crushed concrete. The station area back filled with crushed concrete.
Yard and mainline trenches back filled with ash and crushed concrete respectively. Yard and mainline trenches back filled with ash and crushed concrete respectively.
